Application Scenarios
Ideal for constructing the semi-conducting shield layer of cable joints and terminations up to 220 kV.
Selection Chart
 |  | |
|---|---|---|

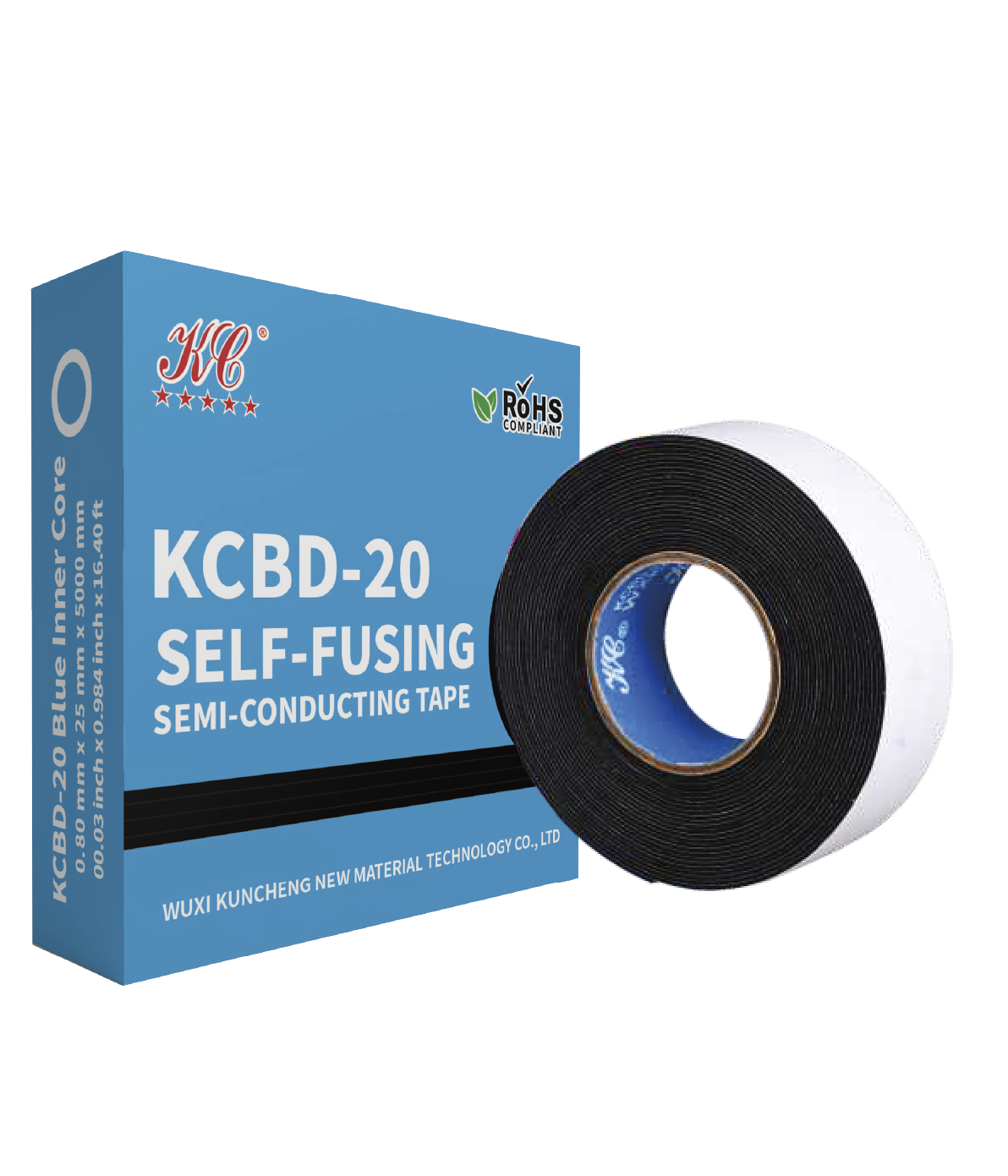

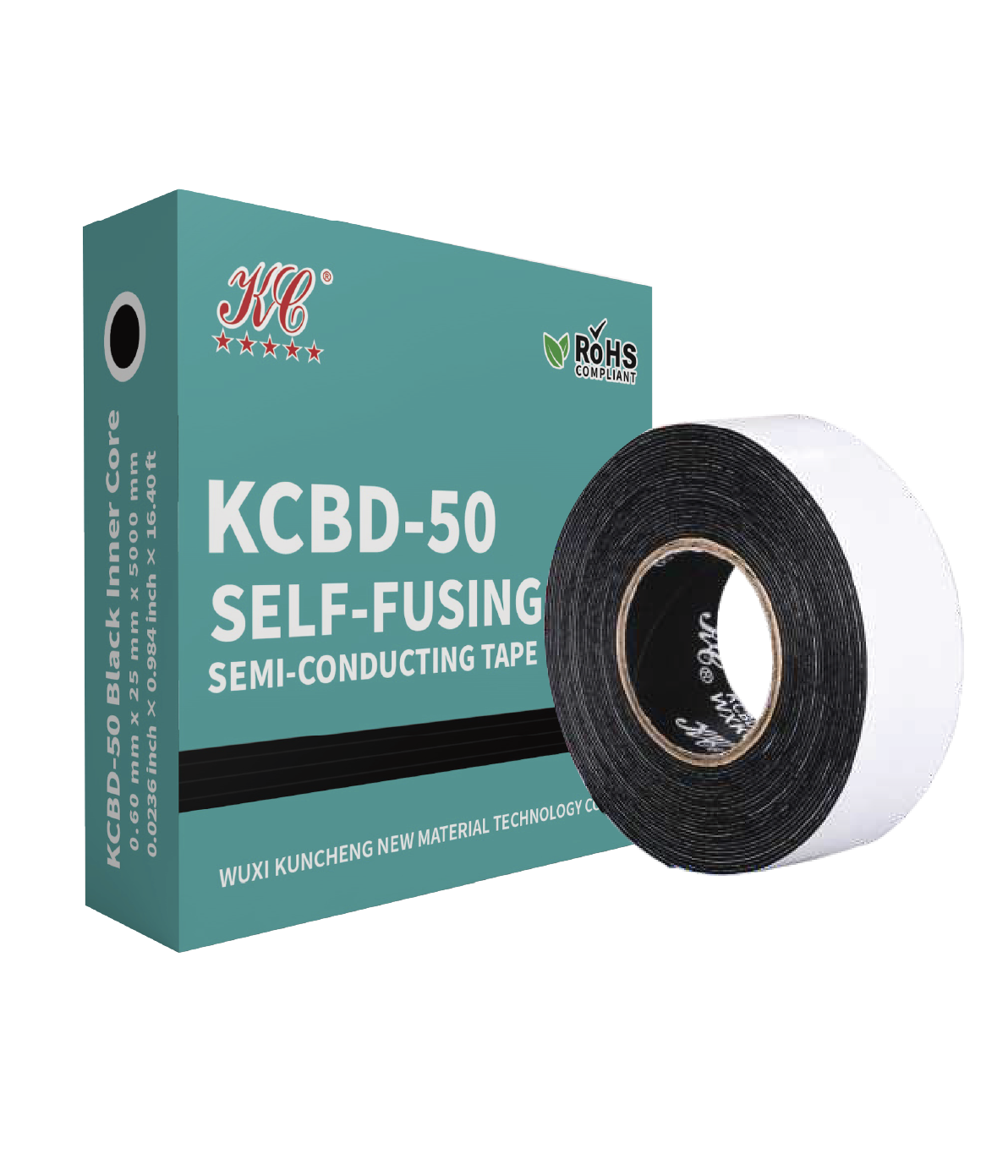

| Available Models | KCBD-20 | KCBD-50 |
Voltage Rating | 10 kV | 220 kV |
| Thickness | 0.80 mm (0.031") | 0.60 mm (0.024") |
| Width | 25 mm (0.984") | 25 mm (0.984") |
| Length | 5,000 mm (16.404') | 5,000 mm (16.404') |
Installation Temperature | -10°C ~ 40°C (14°F ~ 104°F) | -10°C ~ 40°C (14°F ~ 104°F) |
| Base Material | IIR | EPR |
*Dimensions are customizable upon request.
Product Specifications Table
| Available Models | KCBD-20 | KCBD-50 |
|---|---|---|
| Tensile Strength | 3.7 MPa | 4.5 MPa |
| Elongation at Break | 1,000% | 850% |
| Volume Resistivity | 60 Ω·cm | 30 Ω·cm |
| Continuous Operating Temperature | 90°C/194°F | 90°C/194°F |
| Emergency Overload Temperature | 100°C/212°F | 130°C/266°F |
(Typical Values)
Installation Guide
Remove the release liner, then stretch the Self-Fusing Semi-Conducting Tape by approximately 200%. Apply the tape over the target area in successive half-lapped, level-wound layers until the desired thickness is achieved.
