Application Scenarios
For restoring insulation on cable joints and terminations up to 110 kV, as well as other applications requiring reliable electrical insulation.
Selection Chart
|
|  |
| |
|---|---|---|---|---|

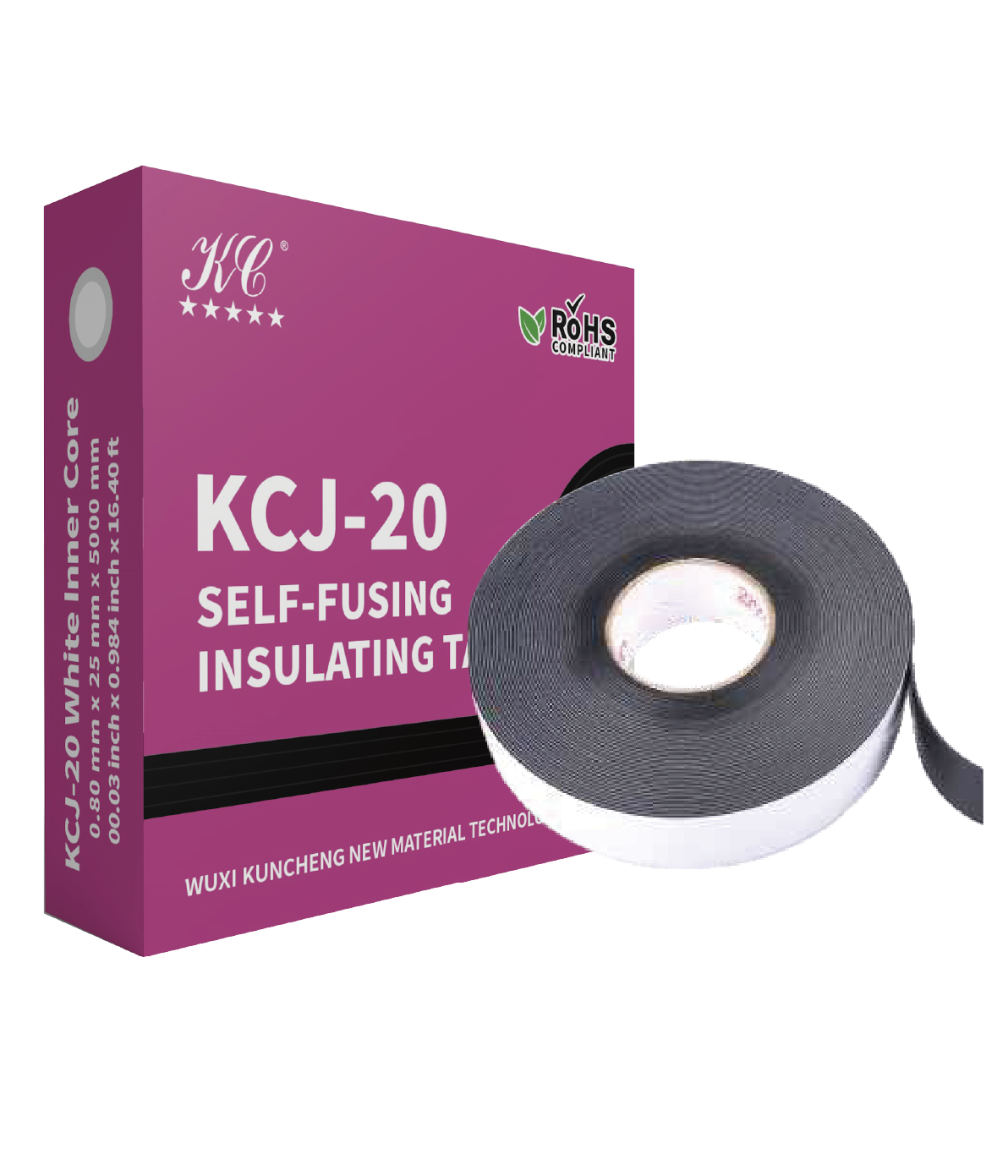

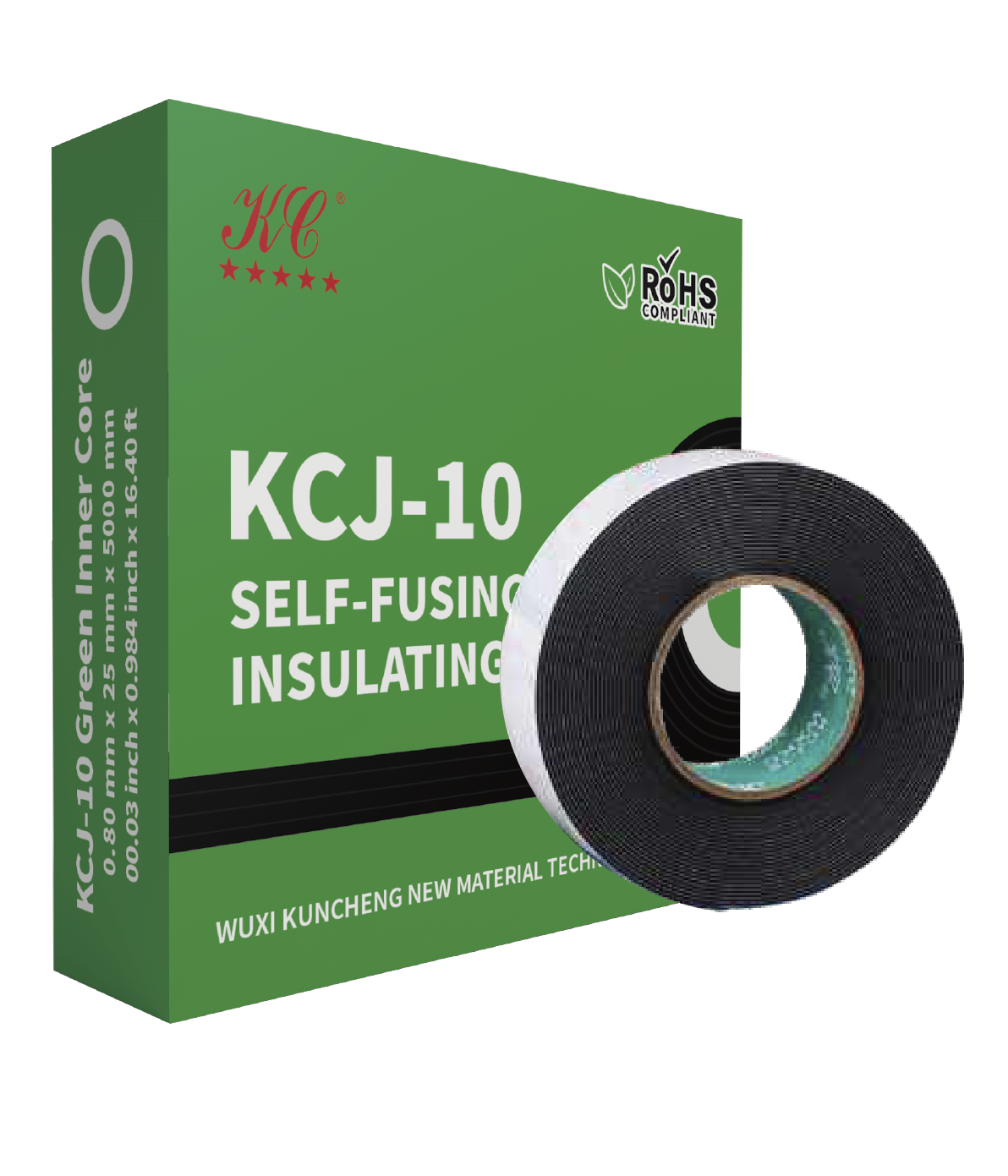

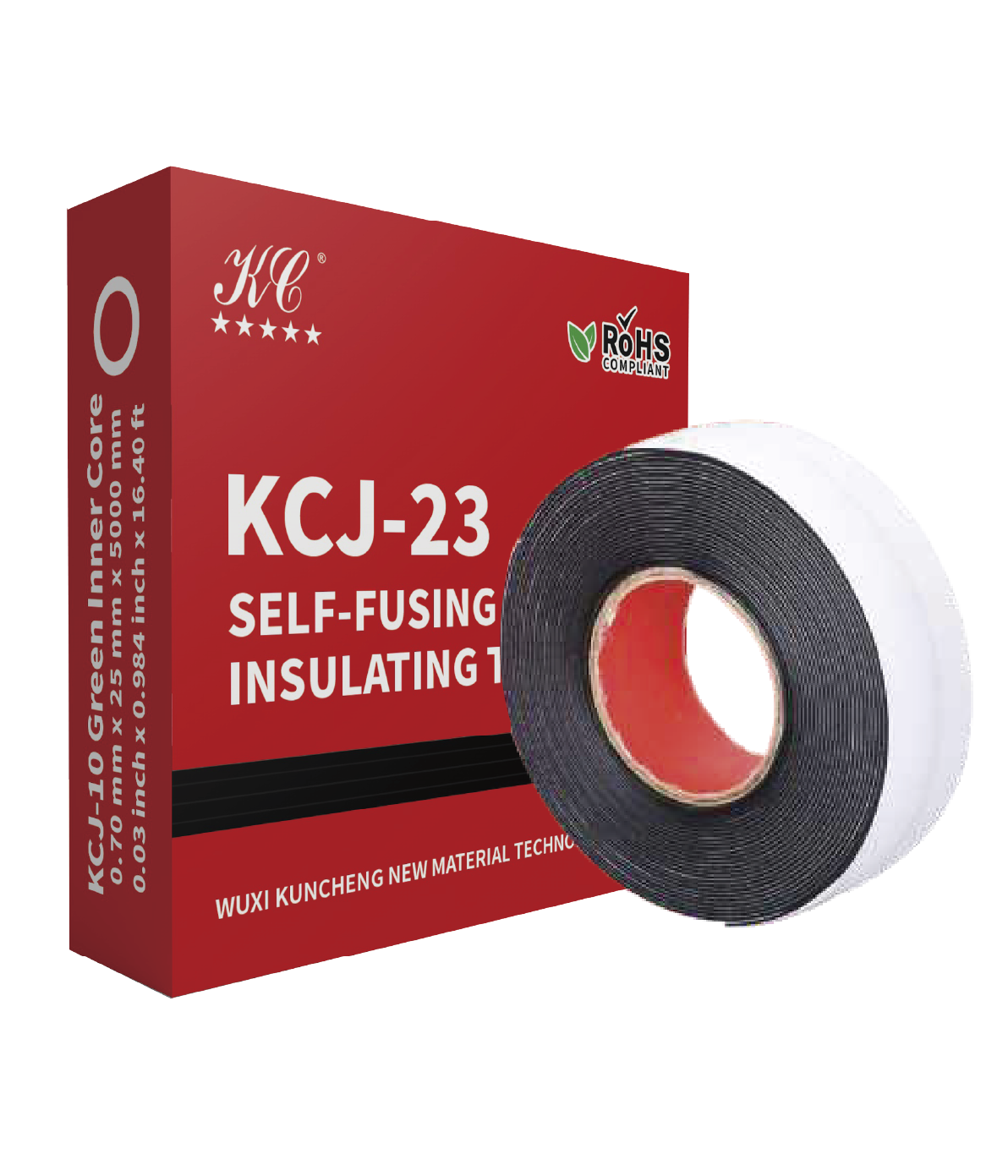

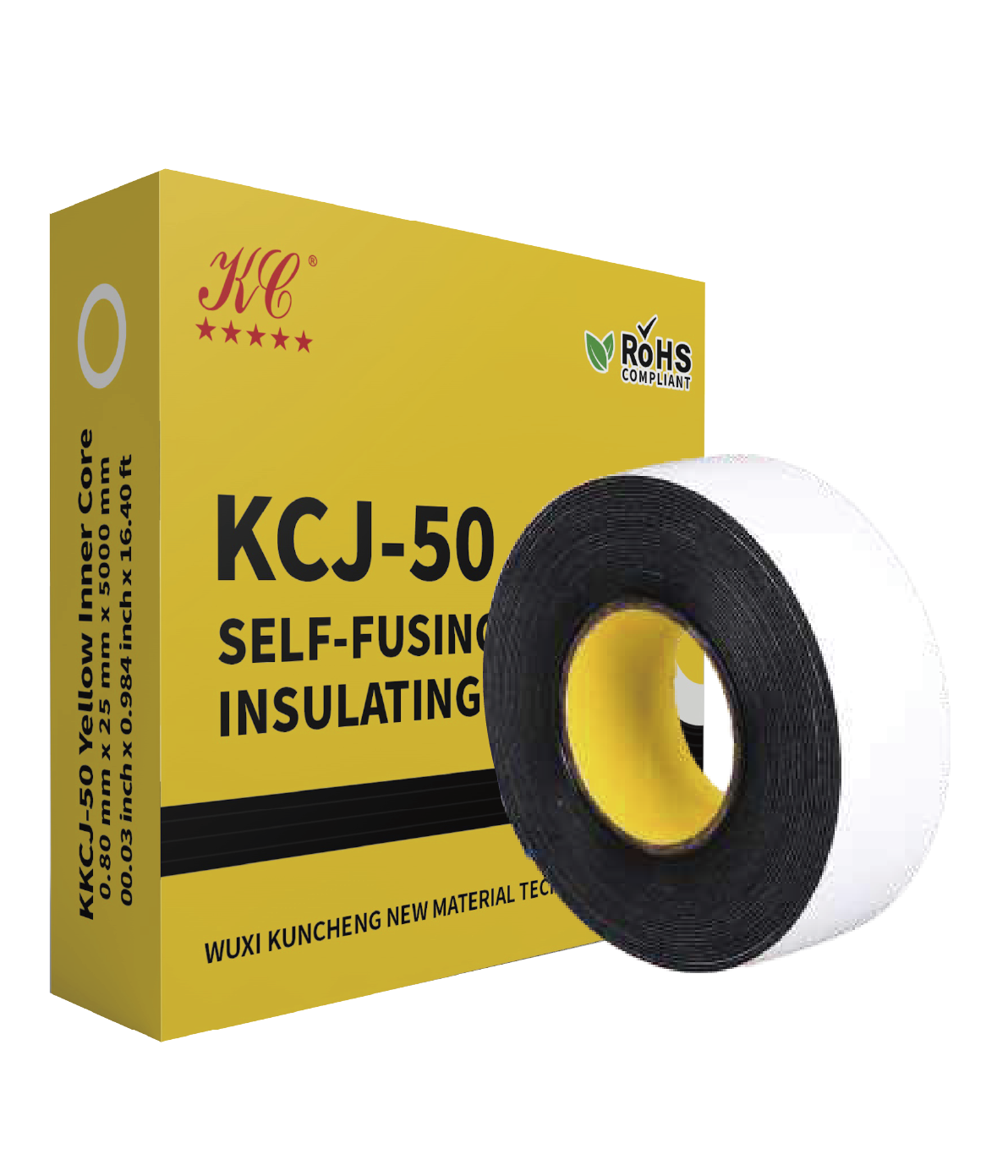

| Available Models | KCJ-10 | KCJ-20 | KCJ-23 | KCJ-50 |
Voltage Rating | 1 kV | 10 kV | 35 kV | 110 kV |
| Thickness | 0.80 mm (0.031") | 0.80 mm (0.031") | 0.60 mm (0.024") | 0.60 mm (0.024") |
| Width | 25 mm (0.984") | 25 mm (0.984") | 25 mm (0.984") | 25 mm (0.984") |
| Length | 5,000 mm (16.404') | 5,000 mm (16.404') | 5,000 mm (16.404') | 5,000 mm (16.404') |
| Installation Temperature | -10°C ~ 40°C (14°F ~ 104°F) | -10°C ~ 40°C (14°F ~ 104°F) | -10°C ~ 40°C (14°F ~ 104°F) | -10°C ~ 40°C (14°F ~ 104°F) |
| Base Material | IIR | IIR | EPR | EPR |
*Dimensions are customizable upon request.
Product Specifications Table
| Available Models | KCJ-10 | KCJ-20 | KCJ-23 | KCJ-50 |
|---|---|---|---|---|
| Tensile Strength | 1.8 MPa | 2.1 MPa | 2.7 MPa | 2.6 MPa |
| Elongation at Break | 810% | 785% | 803% | 748% |
| Dielectric Strength | 19.2 kV/mm | 24.0 kV/mm | 30.0 kV/mm | 35.0 kV/mm |
| Volume Resistivity | 2.8×1014 Ω·cm | 1.7×1015 Ω·cm | 2.5×1015 Ω·cm | 3.0×1015 Ω·cm |
| Continuous Operating Temperature | 75°C/167°F | 90°C/194°F | 100°C/212°F | 90°C/194°F |
| Emergency Overload Temperature | 100°C/212°F | 100°C/212°F | 130°C/266°F | 130°C/266°F |
(Typical Values)
Installation Guide
Remove the release liner, then stretch the Self-Fusing Insulating Tape by approximately 200%. Apply the tape over the target area in successive half-lapped, level-wound layers until the desired thickness is achieved.
