Application Scenarios
Offers waterproofing, insulation, and protective sealing for power cable joints, cold shrink joints, cable jackets, and terminations. Also suitable for industrial and infrastructure waterproofing scenarios: overhead connections and tap clamps, busbar connections, submersible motor cables, telecom cables, city fountains, streetlights, and rail transport.
Selection Chart
|  |  | |
|---|---|---|---|

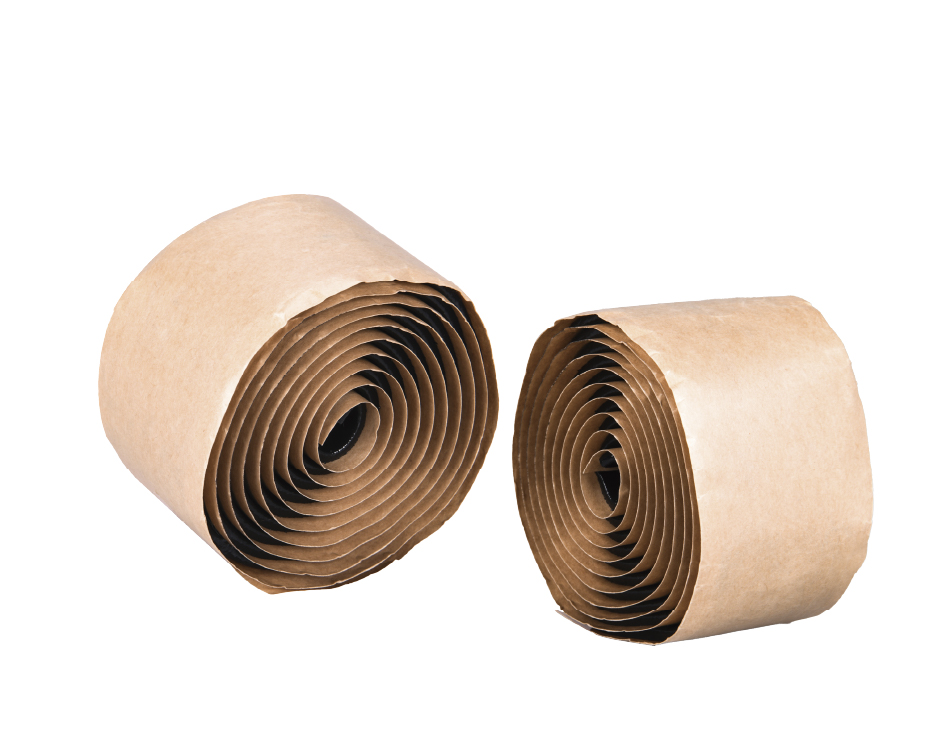

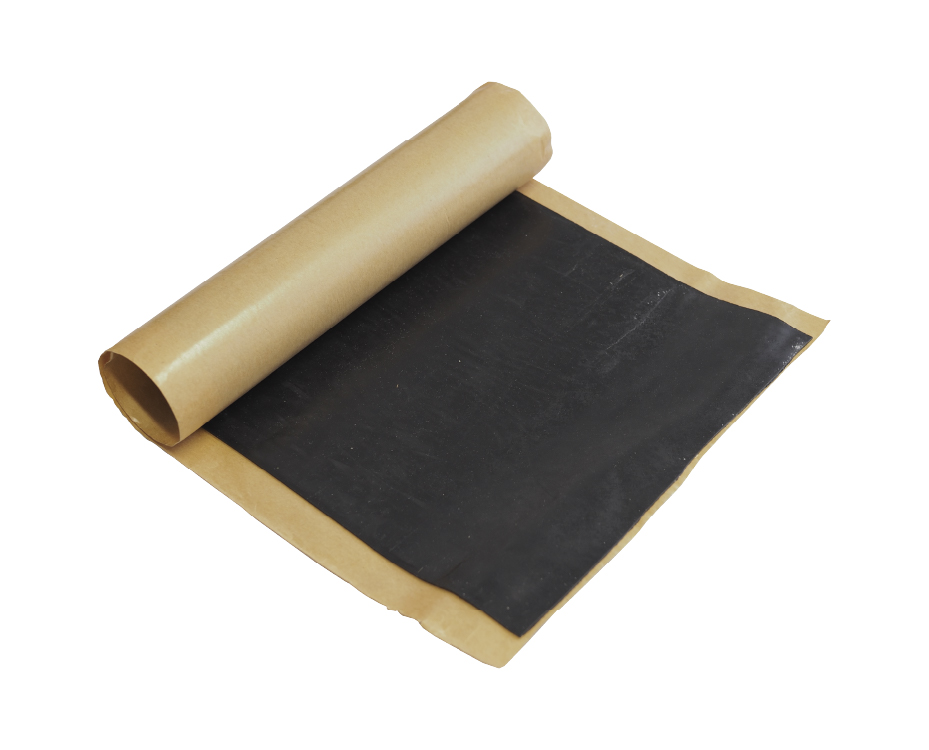

| Available Models | KCJ-80 | KCJ-82 | KCJ-84 |
| Thickness | 1.65 mm (0.065") | 2.40 mm (0.094") | 4.30 mm (0.169") |
| Width | 50 mm (1.969") | 50 mm (1.969") | 210 mm (8.268") |
| Length | 3,000 mm (9.843') | 3,000 mm (9.843') | 400 mm (1.312') |
| Installation Temperature | -10°C ~ 40°C (14°F ~ 104°F) | -10°C ~ 40°C (14°F ~ 104°F) | -10°C ~ 40°C (14°F ~ 104°F) |
| Base Material | IIR+EPR | IIR+EPR | IIR+EPR |
*Dimensions are customizable upon request.
Product Performance Table
| Available Models | KCJ-80 | KCJ-82 | KCJ-84 |
|---|---|---|---|
| Tensile Strength | 1.30 MPa | 0.80 MPa | 0.80 MPa |
| Elongation at Break | 680% | 670% | 690% |
| Dielectric Strength | 18.5 kV/mm | 15.1 kV/mm | 8.5 kV/mm |
| Volume Resistivity | 3.1×1014 Ω·cm | 2.7×1014 Ω·cm | 4.1×1014 Ω·cm |
| Continuous Operating Temperature | 90°C/194°F | 90°C/194°F | 90°C/194°F |
| Peel Strength | 65 N/50 mm | 64 N/50 mm | 70 N/50 mm |
(Typical Values)
Installation Guide
Remove the release liner, then stretch the Waterproof Insulating Tape by approximately 200%. Apply the tape over the target area in successive half-lapped, level-wound layers until the desired thickness is achieved.
